PUNCHING THE UNPUNCHABLE
It should be mentioned here that the following solution required NO NC PROGRAMMING for the client in question.  All of the following functions were performed automatically by our system.

The system first programs the portion of the door that could be reached by the machine. This results in a separate program that is written and documented. Of course, the code that was generated included repositions.

Octo_Door_Program1

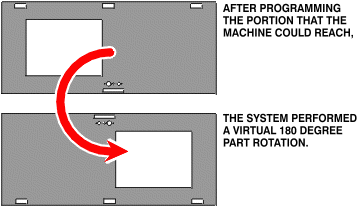

Next, the system performs a virtual rotation of the part that simulates the way that this client processes the door in manufacturing.

Octo_Storyboard_rotate18004

This places the hinges in range where they can be punched.

A second NC program was then written that only included hits for the “Hinge side” of the door.  See diagram below.

Octo_Door_Program2
